Primary IV-set
With dripchamber in-line

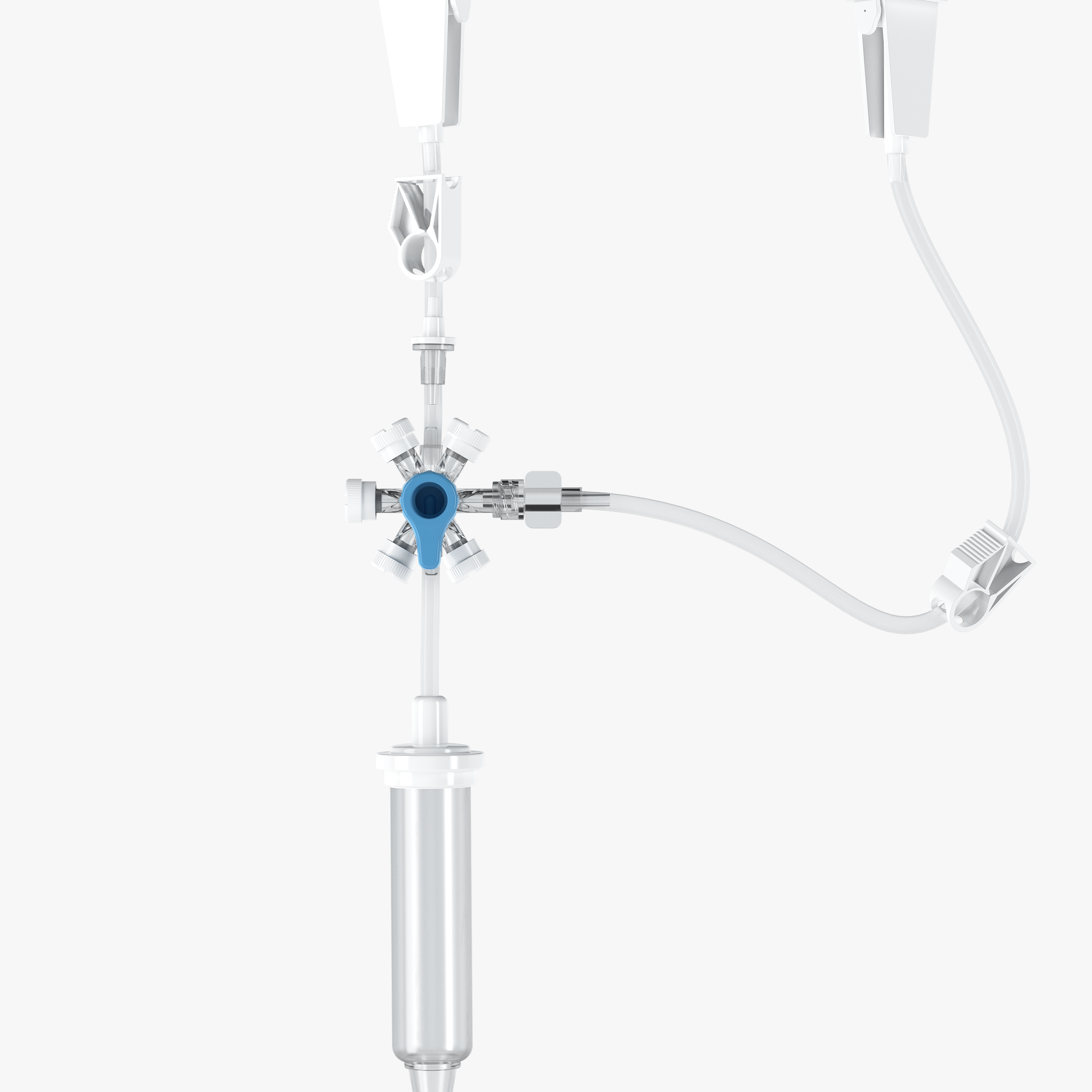

RondelO™ Primary IV-set with drip chamber in-line allows multiple secondary IV-sets to be safely connected, since only one of the drugs connected to the inlets can flow at a time to the patient. To keep the integrity of each drug, neutral flushing fluid is available in between each Drug position, to achieve a sequence and reduce the risk of drug incompatibility.
All RondelO™ Primary IV-sets with Drip chamber in-line are equipped with a one-way valve to keep the integrity of the neutral flushing fluid.
When a RondelO™ Primary IV-set with Drip chamber in-line is used, all the drugs can be administered to the patient with no residual drugs remaining in the secondary IV-sets.
- RondelO™ Primary IV-set for sequential administration of parenteral infusions.
- The one-way valve on the upper primary line ensures integrity of the flushing container.
- RondelO™ multi inlet turn valve manifold in a Primary IV-set equipped with Male Luer Lock is a cost effective alternative for those who don’t utilize closed system valves or if you use a Closed System Valve (CSV) or a Closed System Transfer Device (CSTD) of your own in your daily practice.
RondelO™ House: Tritan™ COPE, UV master batch: Mevopur-Yellow
RondelO™ Handle: Purell™ HDPE, master batch: Mevopur-White
Needle Free Valve: Tritan™ COPE
Tubing: PVC DEHP free (TOTM)
Box size: 386x284x183 mm
Pcs/Box: 50
Choose from a variety of configurations that best suit your specific needs.
- RondelO™ with 2, 4 or 6 ports
- With or without Needle Free Valve (NFV)
- With or without Y-site
- Transparent or with UV-protective material for light sensitive drugs
Approximal length: 240 cm/95 inches
-
- 6 ports RondelO™
-
- 4 ports RondelO™
-
- 2 ports RondelO™
-
- 6 ports RondelO™ with NFV
-
- 4 ports RondelO™ with NFV
-
- 2 ports RondelO™ with NFV
-
- 6 ports RondelO™ UV
-
- 4 ports RondelO™ UV
-
- 6 ports RondelO™ UV with NFV
-
- 4 ports RondelO™ with NFV
-
- 2 ports RondelO™ UV with NFV
IV-set with Male Luer Lock Cap
RondelO™ multi inlet turn valve manifold in a Primary IV-set equipped with Male Luer Lock.
RondelO™ Primary IV-set 6 Luer ports equipped with Male Luer Lock and where the primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2001-01
RondelO™ Primary IV-set 4 Luer ports equipped with Male Luer Lock and where the primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2002-01

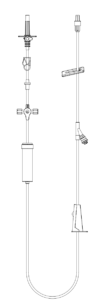

RondelO™ Primary IV-set 2 Luer ports equipped with Male Luer Lock and where the primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2004-01
RondelO™ Primary IV-set where the RondelO™ has 6 Luer ports equipped with Male Luer Lock. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with a Needle Free Valve near the end of the line.
Art no. A2021-01
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 4 Luer ports equipped with Male Luer Lock. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with a Needle Free Valve near the end of the line.
Art no. A2022-01
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 2 Luer ports equipped with Male Luer Lock. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with a Needle Free Valve near the end of the line.
Art no. A2024-01
IV-set with Male Luer Lock Cap UV
RondelO™ in a Primary IV-set equipped with Male Luer Lock and UV-protective material.
RondelO™ Primary IV-set 6 Luer ports equipped with Male Luer Lock and where the primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2001-U1
RondelO™ Primary IV-set 4 Luer ports equipped with Male Luer Lock and where the primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2002-U1
RondelO™ Primary IV-set 2 Luer ports equipped with Male Luer Lock and where the primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2004-U1
RondelO™ Primary IV-set where the RondelO™ has 6 Luer ports equipped with Male Luer Lock. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with a Needle Free Valve near the end of the line.
Art no. A2021-U1
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 4 Luer ports equipped with Male Luer Lock. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with a Needle Free Valve near the end of the line.
Art no. A2022-U1
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 2 Luer ports equipped with Male Luer Lock. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with a Needle Free Valve near the end of the line.
Art no. A2024-U1
IV-set with Needle Free Valve
RondelO™ multi inlet turn valve manifold in a Primary IV-set equipped with a Needle Free Valve (NFV). NFV is not yet released.
RondelO™ Primary IV-set 6 ports equipped with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2011-01
RondelO™ Primary IV-set 4 ports equipped with Needle Free Valves. The primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2012-01
RondelO™ Primary IV-set 2 ports equipped with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2014-01
RondelO™ Primary IV-set where the RondelO™ mukti inlet turn valve manifold has 6 ports with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with another Needle Free Valve near the end of the line.
Art no. A2031-01
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 4 ports with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with another Needle Free Valve near the end of the line.
Art no. A2032-01
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 2 ports with Needle Free Valves. The primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with another Needle Free Valve near the end of the line.
Art no. A2034-01
IV-set with Needle Free Valve UV
RondelO™ multi inlet turn valve manifold in a Primary IV-set equipped with a Needle Free Valve (NFV) and UV-protective material. NFV is not yet released.
RondelO™ Primary IV-set 6 ports equipped with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2011-U1
RondelO™ Primary IV-set 4 ports equipped with Needle Free Valves. The primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2012-U1
RondelO™ Primary IV-set 2 ports equipped with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ multi inlet turn valve manifold.
Art no. A2014-U1
RondelO™ Primary IV-set where the RondelO™ mukti inlet turn valve manifold has 6 ports with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with another Needle Free Valve near the end of the line.
Art no. A2031-U1
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 4 ports with Needle Free Valves. The Primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with another Needle Free Valve near the end of the line.
Art no. A2032-U1
RondelO™ Primary IV-set where the RondelO™ multi inlet turn valve manifold has 2 ports with Needle Free Valves. The primary IV-set has a Dripchamber in-line below the RondelO™ and a Y-site with another Needle Free Valve near the end of the line.
Art no. A2034-U1
Medical Devices are CE-marked and in compliance with MDR 2017/745, with Sky Medical a.s. as the legal manufacturer. Medical Devices does not yet hold a FDA 510 (k).
RondelO™ sold as a Component, not as a Medical Device and not as a Replacement part, does not hold a CE-mark or a FDA 510 (k).
